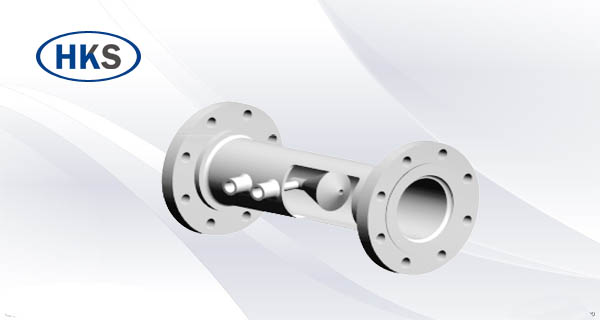

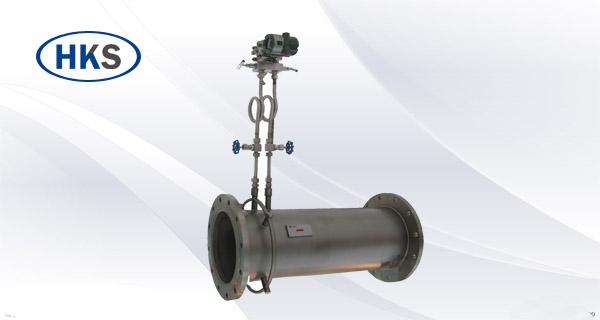

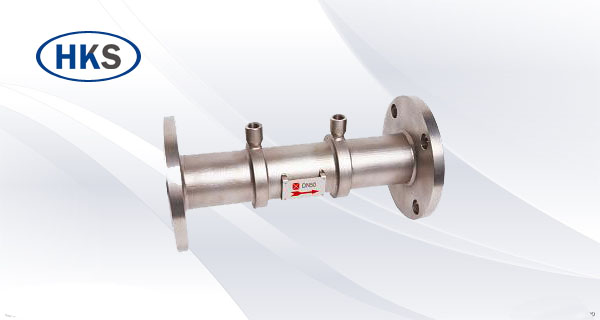

HKVC Serial V-cone Flowmeter

Features

Usage: To measure flowrate of fluid, two-phase medium(moisture, condensate etc), dirty medium(coke-oven gas, BFG, natural gas, raw oil etc) and so on.

Measured Fluid: Steam, Gas, Liquid
Nominal Diameter: DN15~DN2000
Precision: ±0.5% (the accuracy of differential pressure flow transmitter shall be no less than 0.2%) Repeatability: ±0.1%
Rated Pressure: ≤16MPa, Maximum≤42MPa
Working Temperature: -40~700℃
Ambient Temperature: -40~65℃
Wide Turndown Ratio: Generally 10:1
Low Pressure Loss: Pressure loss is 1/3~1/5 that of the orifice plate when the β value remains the same
Requirement of Straight Pipe: Straight pipe 0-3D upstream and 0-1D downstream, no straight tube is needed for square pipe V-cone flow transducer
Structural Materials: Measuring Pipe and Flange: 304 Stainless Steel, 20# Carbon Steel, Others V-cone and Connecting Accessories: 304 Stainless Steel
Tapping: 304Stainless Steel
Three-value Manifold (accessory, optional): 304 Stainless Steel
Induced Pressure pipe (accessory, optional): 304 Stainless Steel
Condensation Tank (accessory, optional): 304 Stainless Steel
Drainage Value (accessory, optional): 304 Stainless Steel
Coat on the External Surface:
Full Stainless Steel 304: Spared by Stainless Steel Sands

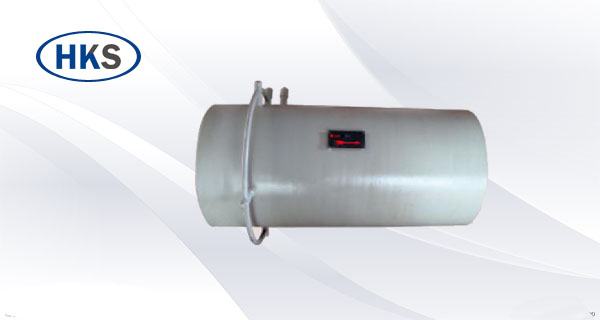

The Material of Measuring Pipe is Carbon Steel: Siliver Gray Epoxy Reins Paintings
